H-Beam Forged Connecting Rods with KS 81.51mm Pistons for AUDI VW 1.9TDI PD130/140/170 1.9/2.0 8V Engines
Ref. SET2.0
HIGH QUALITY TESTED H-Beam Connecting Rods with KS 81.51mm pisonts For Audi / VW 1.9L TDI & 2.0L TDI
Feature of Rods:
Fit for - For Audi VW TDI PD130/140/150/170 1.9/2.0L
Type - Forged 4340 EN24 Aircraft Chrome Moly Steel H-Beam Connecting Rod

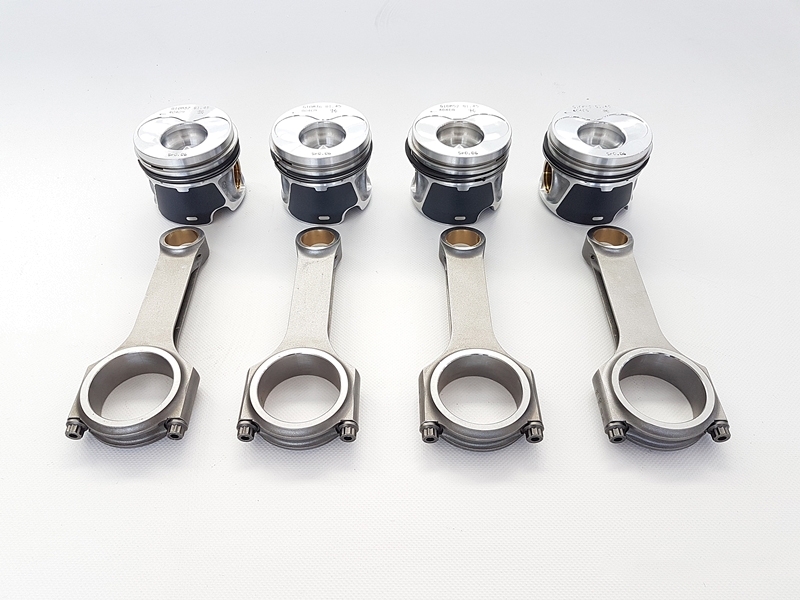

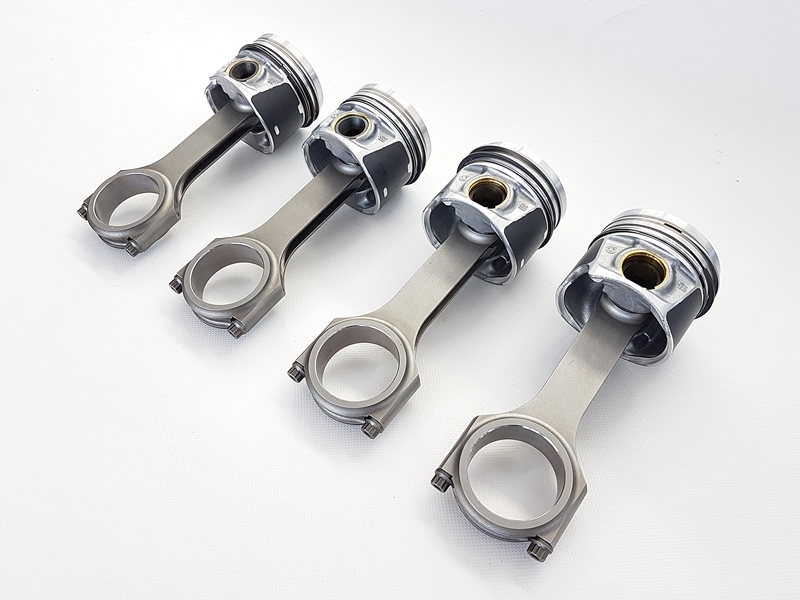

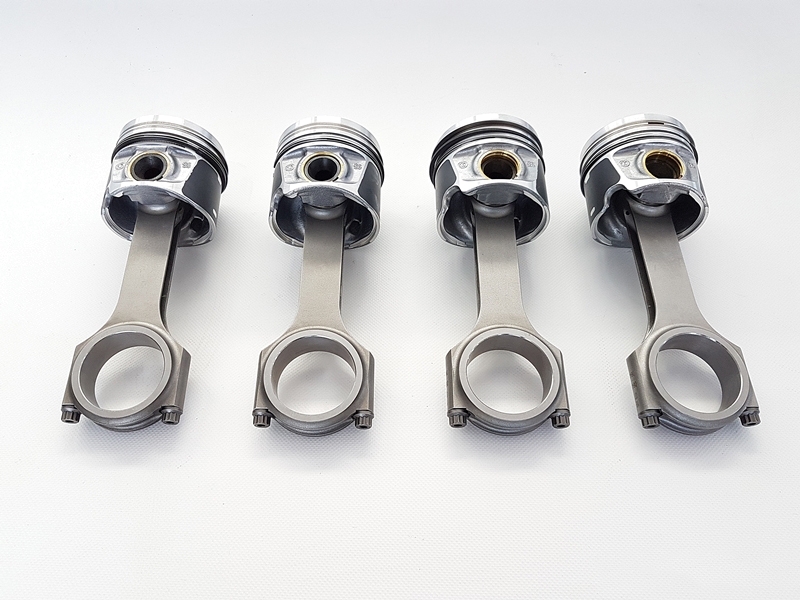

Quantity - 4 Pieces as showing in picture
Bolts - Including Genuine ARP 2000 5/16" bolts
Bolts size - ARP 2000 5/16" bolts
Tolerance - Balanced to +/- 1 gram in set
Dimensions:
Center to center length - 144mm
Big end diameter - 53.7mm
Small end diameter - 26mm taper small end
Big end width - 24.9mm
Small end width - 24.9mm
Feature of Pistons:
Oversize [mm]: 0,50
Bolt Ø [mm]: 26
Bolt length [mm]: 66
Bore Ø [mm]: 81,51
Compression Height [mm]: 45,55
Length [mm]: 68,8
Recess Depth 1 [mm]: 17,5
Valve pocket depth 1 [mm]: 0,7
Recess Diameter [mm]: 38
ATTENTION: This pistons have a ovesize bore, for this reason engine block need to be machining for the correct tolerance
This will fit the cars with the following Engine Codes:
VW Beetle - CJAA / CFFB 140
VW Amarok - CDBA / CNFA 122, CDCA 163, CNEA 180
VW Bora - ASZ 130, ARL 150
VW Golf Mk4 - ASZ 130, ARL 150
VW Golf Mk5 - CLCA 110, AZV 136, BKD 140, BMN 170
VW Golf Mk5 Plus - AZV 136, BKD / BMM 140, BMN 170
VW Jetta - CLCA 110, AZV / CBDA 136, BKD / BMM / CBDB 140, BMN 170
VW Eos - CFFA 136, BMM / CBAB / CFFB 140
VW Passat - CBDC 110, BVE / BWV 120, BMA / CBAA 136, BKP / BMP / CBAB 140, CBAC 143, BMR / CBBB 170
VW Touran - CLCA 110, AZV 136, CFHC / BKD 140, CFJA / BMN 170
VW Tiguan - CBAB 140, CBBA / CBAA 163, CBBB 170
VW Toureg - BLK / BPD 163, BAC / BPE 175
VW Caddy - CFHE 85, CLCA / CFHF 110, CFHC / BMM 140, CFJA 170
VW Polo - ASZ / BLT 130
VW Scirroco - CFHB 136, CFHC / CBDB 140, CFGB / CBBB 170
Audi A1 - CFHD 143,
Audi A3 - ASZ 130, AZV 136, CBAB / BKD 140, CBBA / CBAA 163, CBBB / BMN 170
Audi A3 Cabriolet - CBAA / CFAA 136, CBAB / CFFB 140
Audi A4 - AWX / AVF 130, BKE / BRB 115, CAGA 143, CAHB 163, CAHA / CMGA 170
Audi A5 - CAGC 120, CAHB / CAGB 163, CAGA 143, CMEA / CAHA 170
Audi A6 - BVG 121, AWX / AVF 130, BRF / BNA 136, BRE / BLB 140
Skoda Fabia - ASZ / BLT 130
Skoda Octavia - ASZ 130, AZV 136, BKD / BMM 140, BMN 170
Skoda Superb - AWX / AVF 130
Seat Toledo - AZV 136, BKD 140, BMN 170
Skoda Yeti - CBDB 140, CEGA 170
Seat Altea - AZV 136, BKD / BMM 140, CEGA / BMN 170
Seat Leon - ASZ 130, AZV 136, BKD / BMM 140 ARL 150, BMN 170
Seat Toledo - ASZ 130, AZV 136, BKD / BMM 140 ARL 150, BMN 170
Seat Alhambra - ASZ 130, BRT 140, BTB 150
Seat Ibiza - BLT / ASZ 130, CFHD 143, BUK / BPX 160
Feature of Rods:
Fit for - For Audi VW TDI PD130/140/150/170 1.9/2.0L
Type - Forged 4340 EN24 Aircraft Chrome Moly Steel H-Beam Connecting Rod
Quantity - 4 Pieces as showing in picture
Bolts - Including Genuine ARP 2000 5/16" bolts
Bolts size - ARP 2000 5/16" bolts
Tolerance - Balanced to +/- 1 gram in set
Dimensions:
Center to center length - 144mm
Big end diameter - 53.7mm
Small end diameter - 26mm taper small end
Big end width - 24.9mm
Small end width - 24.9mm
Feature of Pistons:
Oversize [mm]: 0,50
Bolt Ø [mm]: 26
Bolt length [mm]: 66
Bore Ø [mm]: 81,51
Compression Height [mm]: 45,55
Length [mm]: 68,8
Recess Depth 1 [mm]: 17,5
Valve pocket depth 1 [mm]: 0,7
Recess Diameter [mm]: 38
ATTENTION: This pistons have a ovesize bore, for this reason engine block need to be machining for the correct tolerance
This will fit the cars with the following Engine Codes:
VW Beetle - CJAA / CFFB 140
VW Amarok - CDBA / CNFA 122, CDCA 163, CNEA 180
VW Bora - ASZ 130, ARL 150
VW Golf Mk4 - ASZ 130, ARL 150
VW Golf Mk5 - CLCA 110, AZV 136, BKD 140, BMN 170
VW Golf Mk5 Plus - AZV 136, BKD / BMM 140, BMN 170
VW Jetta - CLCA 110, AZV / CBDA 136, BKD / BMM / CBDB 140, BMN 170
VW Eos - CFFA 136, BMM / CBAB / CFFB 140
VW Passat - CBDC 110, BVE / BWV 120, BMA / CBAA 136, BKP / BMP / CBAB 140, CBAC 143, BMR / CBBB 170
VW Touran - CLCA 110, AZV 136, CFHC / BKD 140, CFJA / BMN 170
VW Tiguan - CBAB 140, CBBA / CBAA 163, CBBB 170
VW Toureg - BLK / BPD 163, BAC / BPE 175
VW Caddy - CFHE 85, CLCA / CFHF 110, CFHC / BMM 140, CFJA 170
VW Polo - ASZ / BLT 130
VW Scirroco - CFHB 136, CFHC / CBDB 140, CFGB / CBBB 170
Audi A1 - CFHD 143,
Audi A3 - ASZ 130, AZV 136, CBAB / BKD 140, CBBA / CBAA 163, CBBB / BMN 170
Audi A3 Cabriolet - CBAA / CFAA 136, CBAB / CFFB 140
Audi A4 - AWX / AVF 130, BKE / BRB 115, CAGA 143, CAHB 163, CAHA / CMGA 170
Audi A5 - CAGC 120, CAHB / CAGB 163, CAGA 143, CMEA / CAHA 170
Audi A6 - BVG 121, AWX / AVF 130, BRF / BNA 136, BRE / BLB 140
Skoda Fabia - ASZ / BLT 130
Skoda Octavia - ASZ 130, AZV 136, BKD / BMM 140, BMN 170
Skoda Superb - AWX / AVF 130
Seat Toledo - AZV 136, BKD 140, BMN 170
Skoda Yeti - CBDB 140, CEGA 170
Seat Altea - AZV 136, BKD / BMM 140, CEGA / BMN 170
Seat Leon - ASZ 130, AZV 136, BKD / BMM 140 ARL 150, BMN 170
Seat Toledo - ASZ 130, AZV 136, BKD / BMM 140 ARL 150, BMN 170
Seat Alhambra - ASZ 130, BRT 140, BTB 150
Seat Ibiza - BLT / ASZ 130, CFHD 143, BUK / BPX 160
